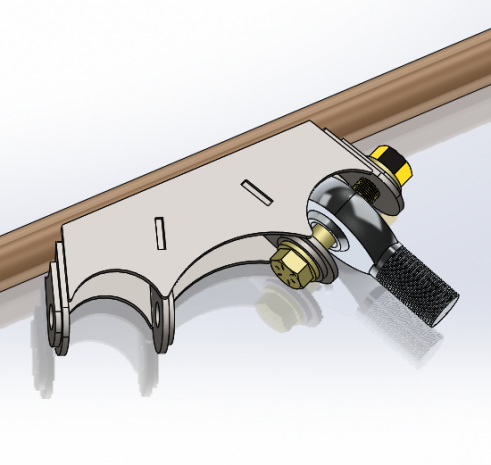

TRIANGULATED LOWER 45* LINK PIVOT - 1.5" ROUND TUBE - 5/8" HOLE
$18.00
In stock
SKU
604-JEH-158A
These triangulated lower link mounts are PTF and feature no bends. Using 3/16" material for the plates and overlays, these files are fabrication-friendly and coped to seamlessly mount to round tubing. Designed by Tekk Consulting LLC
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***These products are Digital Assets. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
