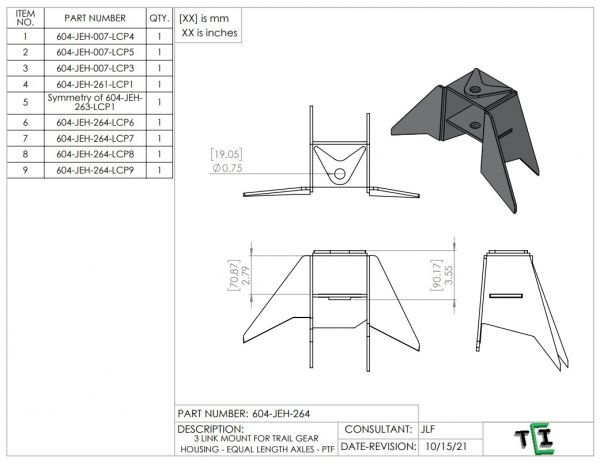

3 LINK MOUNT FOR TRAIL GEAR HOUSING - EQUAL LENGTH AXLES - PTF
This link mount setup is for Equal Length Axles and is designed for the Trail Gear housing center section and setup for 3/4" pivot bolt and 1.25" rod end on a 2.75” spread for traditional 3 link setups, both for desert racing and rock racing.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
This link mount setup is for Equal Length Axles and is designed for the Trail Gear housing center section and setup for 3/4" pivot bolt and 1.25" rod end on a 2.75” spread for traditional 3 link setups, both for desert racing and rock racing.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
